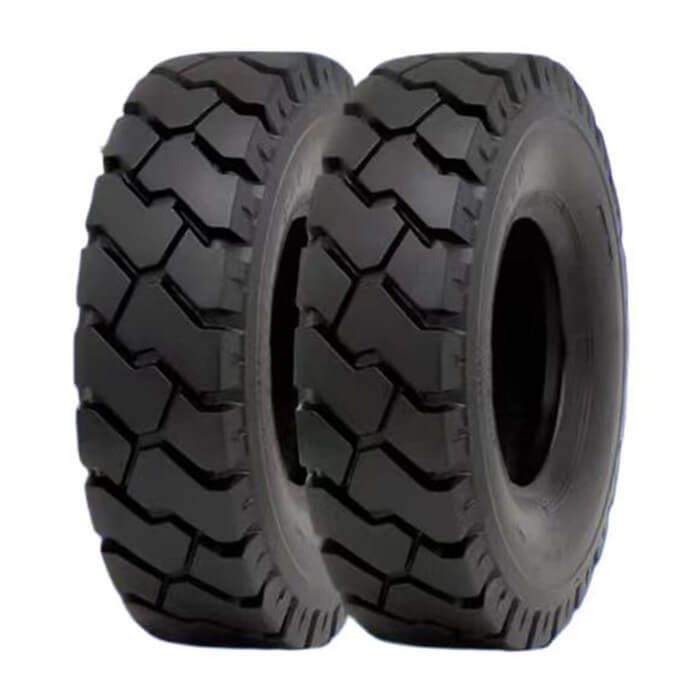

Pneumatic Forklift Tire SD6000

Applicable Models: Forklifts used in factories, logistics centers, warehouses, and material handling operations.

Pneumatic Forklift Tire SD6000



Applicable Models: Forklifts used in factories, logistics centers, warehouses, and material handling operations.

1.Unique Crown Block Design with High Tread Saturation for Superior Wear Resistance

The tire features a specially engineered crown tread pattern with dense, saturated blocks, delivering exceptional durability under heavy-duty usage.

2.Reinforced Carcass Structure for High Load-Bearing Capacity

The optimized carcass design enhances structural integrity, enabling the tire to withstand substantial loads while maintaining stability.

3.Shoulder Heat Dissipation Grooves for Extended Service Life

Strategically placed shoulder grooves improve thermal management, reducing heat buildup and significantly prolonging tire lifespan.

4.Excellent Ride Stability

The tire’s balanced construction ensures smooth and stable performance, minimizing vibrations during operation.

规 格
SIZE
层级
PR
花纹代码
PATTERN CODE
标准轮辋
STANDARD RIM
花 纹 深 度
TREAD DEPTH(mm)
外直径
OVERALL DIAMETER  (mm)
断面宽
Section Width(mm)
标准气压
PRESSURE  (Kpa)
单 胎 负 荷
  MAX LOADING  (Kg)
5.00-8TT10PRSD60003.50D11 470 137 1000 1150
15*41/2-8TT12PRSD60003.251 8 385 122 1000 840
18*7-8TT14PRSD60004.33R11 465 173 970 1505
18*7-8TT16PRSD60004.33R11 465 173 1000 1695
6.00-9TT10PRSD60004.00E12 540 160 860 1505
6.00-9TT12PRSD60004.00E12 540 160 1030 1675
7.00-9TT10PRSD60005.00S12 590 190 860 1995
21*8-9TT16PRSD60006.00E15 535 200 1000 2120
6.50-10TT10PRSD60005.00F16 590 175 790 1655
23x9-10TT18PRSD60006.50F18 595 225 900 2430
23*9-10TT20PRSD60006.50F18 595 225 1000 2650
4.50-12TT8PRSD60003.00B11 548 122 900 1175
7.00-12TT12PRSD60005.00S14 676 190 860 2375
7.00-12TT14PRSD60005.00S14 676 190 1000 2590
8.25-12TT12PRSD60006.5 13 765 235 720 3060
23*10-12TT12PRSD60008.00G18 597 254 700 2670
5.50-15TT8PRSD60004.50E14 670 157 720 1670
6.00-15TT10PRSD60004.50 14 705 170 830 2185
7.00-15TT12PRSD60005.5(φ388)14 750 200 860 2870
7.50-15TT12PRSD60006.0 15 780 215 790 3075
7.50-15TT14PRSD60006.0 15 780 215 925 3375
8.25-15TT12PRSD60006.5 16 840 235 720 3490
8.25-15TT14PRSD60006.5 16 840 235 830 3775
8.25-15TT16PRSD60006.5 16 840 235 925 4050
8.25-15TT12PRSD6000(X1)6.5 14 840 235 720 3490
8.25-15TT14PRSD6000(X1)6.5 14 840 235 830 3775
28*9-15TT16PRSD60007.0 17 706 220 1000 3115
250-15TT16PRSD60007.5 17.5 735 250 825 3350
250-15TT20PRSD60007.5 17.5 735 250 1000 3875
300-15TT20PRSD60008.0 20 840 300 930 6575
12.00-20TT16PRSD60008.5 25 1145 315 690 6915
12.00-20TT18PRSD60008.5 25 1145 315 790 7155
12.00-20TT20PRSD60008.5 25 1145 315 1000 7400
12.00-20TT22PRSD60008.5 25 1145 315 1100 9085
